Small Tolerance Precision Locating Pins Round Head Internal Threaded Type

Product Categories
JESENTECH GROUP CORPORATION
Contact Now

Small Tolerance Precision Locating Pins Round Head Internal Threaded Type

  • 1
  • 2
  • 3

Brand Name : JESENTECH

Model Number : custom service

Certification : IATF16949:2016

Place of Origin : CHINA

MOQ : 1-5 pieces

Price : Negotiated price

Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal

Supply Ability : 1500000 pieces/Month

Delivery Time : 3-10days

Packaging Details : General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)

Material : SUS316F/SUS304/316L Stainless Steel,SKD11 etc.

Hardness : 35~40HRC or 55HRC~Or meet your needs

MOQ : NONE

Service : Customized

Tolerance : ±0.002mm

Application : automation equipment

Lead Time : 3-5days

Size : According to your requirements

Main processing equipment : Automatic Lathe, CNC Machine and BNC machine

Certificate : IATF16949:2016 ROHS

Contact Now

Small tolerance of 304 Stainless Steel Round head internal thread type Locating Pins for Injection mold making

Introduction:

One of the most common ways of workholding is by location with reference to an external surface. This is also known as locating to a datum surface. Flat surfaces are commonly used for locating. However, there can be various types of locators depending on the application.

Locating Pin Method:

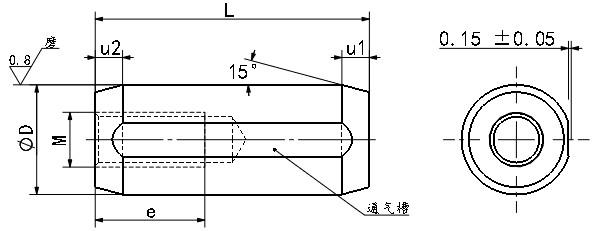

The most common method used for locating is with the help of locating pins. Locating pins are available in a variety of standard sizes and shapes depending on the application they are to be used in. For example a “diamond” head pin is used as a feature to help with the locating operation in situations with machining inaccuracies while a flat face with chamfered head style pin is used in applications with short strokes. The different kinds of pins available can be seen in the figure below.

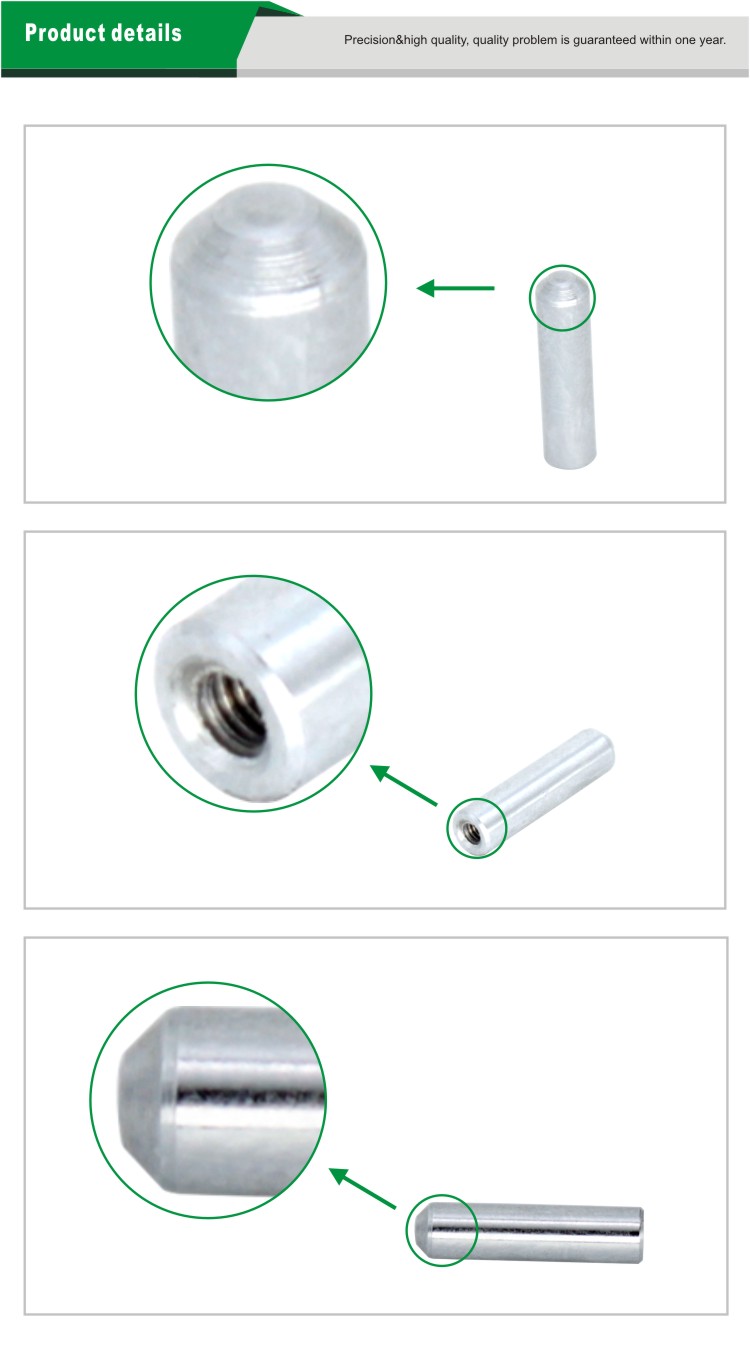

Small Tolerance Precision Locating Pins Round Head Internal Threaded Type

Small Tolerance Precision Locating Pins Round Head Internal Threaded Type

Small Tolerance Precision Locating Pins Round Head Internal Threaded Type

Small Tolerance Precision Locating Pins Round Head Internal Threaded Type


Small Tolerance Precision Locating Pins Round Head Internal Threaded Type
